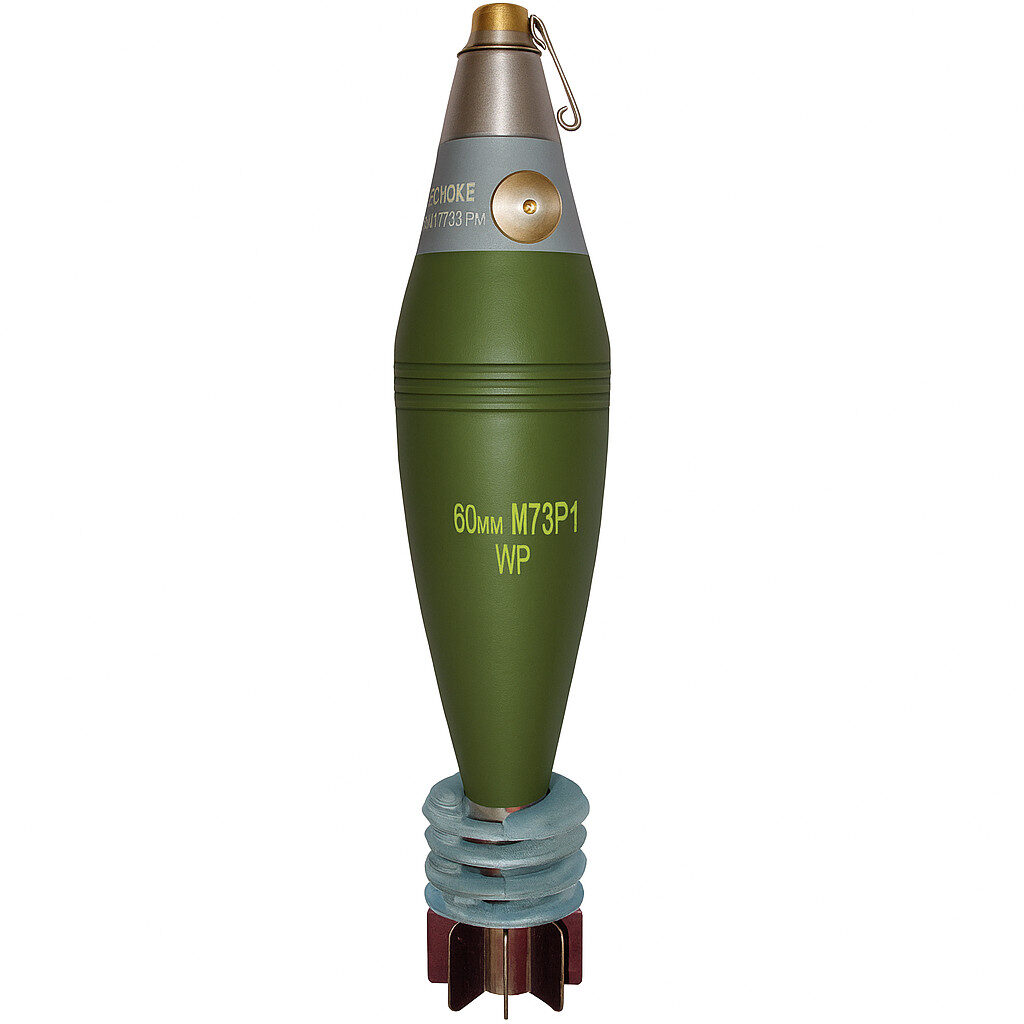

Description

TECHNICAL DATA

• Length of shell with fuze: 286 mm
• Mass of mortar shell with fuze: 1350 g
• Weight of smoke charge: 220 g
• Type of smoke charge: White phosphorus
• Fuze: Impact, superquick action, UT M68 P1
• Muzzle safety at lowest initial velocity: 8 m
• Additional equipment: Shell is completed with ignition cartridge and increment charges
• Safe operational temperature range: -30°C to +50°C
• Safety: High safety during transportation, handling, and parachuting

BALLISTIC DATA

(Using 60 mm Mortar with barrel length 650 mm)

• Maximum range: 2500 m
• Maximum mean operating pressure in mortar: 392 bars
• Compatibility: The mortar shells can be fired from smooth bore mortar launchers

PACKING

• Packing unit: 1 complete shell per carton
• Outer packaging: 12 cartons per wooden case
• Wooden case dimensions: 553 × 429 × 223 mm
• Gross weight: 31.5 kg
• Volume of wooden case: 0.053 m³
• UN number: 0246
• Hazard class: 1.3H
