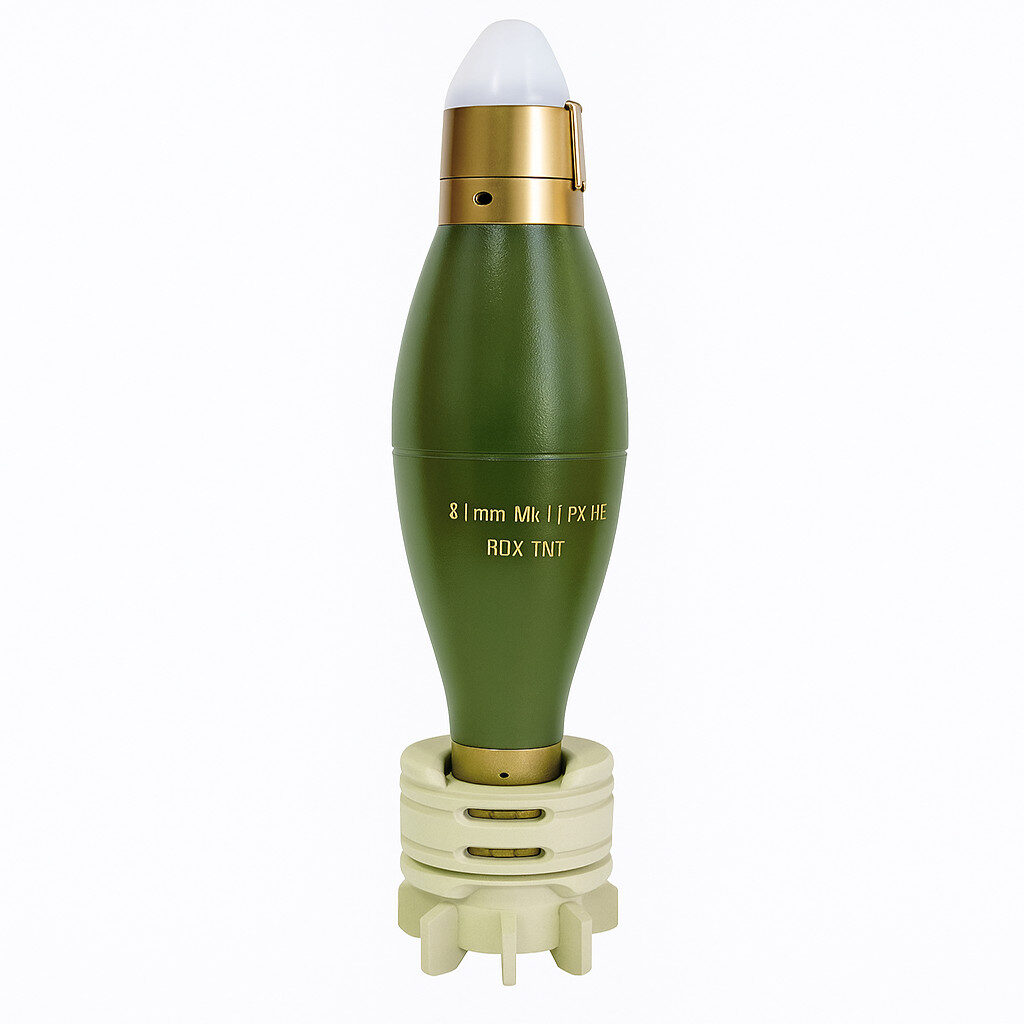

Description

TECHNICAL DATA

• Length of shell with fuze: 526 mm
• Mass of mortar shell with fuze: 4275 g
• Explosive charge: hexolite (ROX/TNT) or trotyl (TNT)
• Mass of explosive charge: 900 g
• Fuze: proximity, MBU M18
• Muzzle safety at lowest initial velocity: 50 m
• Shell is completed with: ignition cartridge and increment charges
• Safe operational temperature range: 46°C to +63°C
• Remarks: High safety during transportation, handling, and parachuting

BALLISTIC DATA

• Mortar: 81 mm, barrel length 1450 mm
• Maximum range: 6500 m
• Max mean operating pressure in mortar: 618 bars
• Killing range (1 penetration/m²) – radius: 18 m

The mortar shells can be fired from smooth bore mortar launchers.

PACKING

• 1 complete shell per carton
• 5 cartons per wooden case
• Dimensions of wooden case: 582 x 557 x 154 mm
• Gross weight: 34 kg
• Volume of wooden case: 0.050 m³
• UN No.: 0321
• Hazard class: 1.2E
