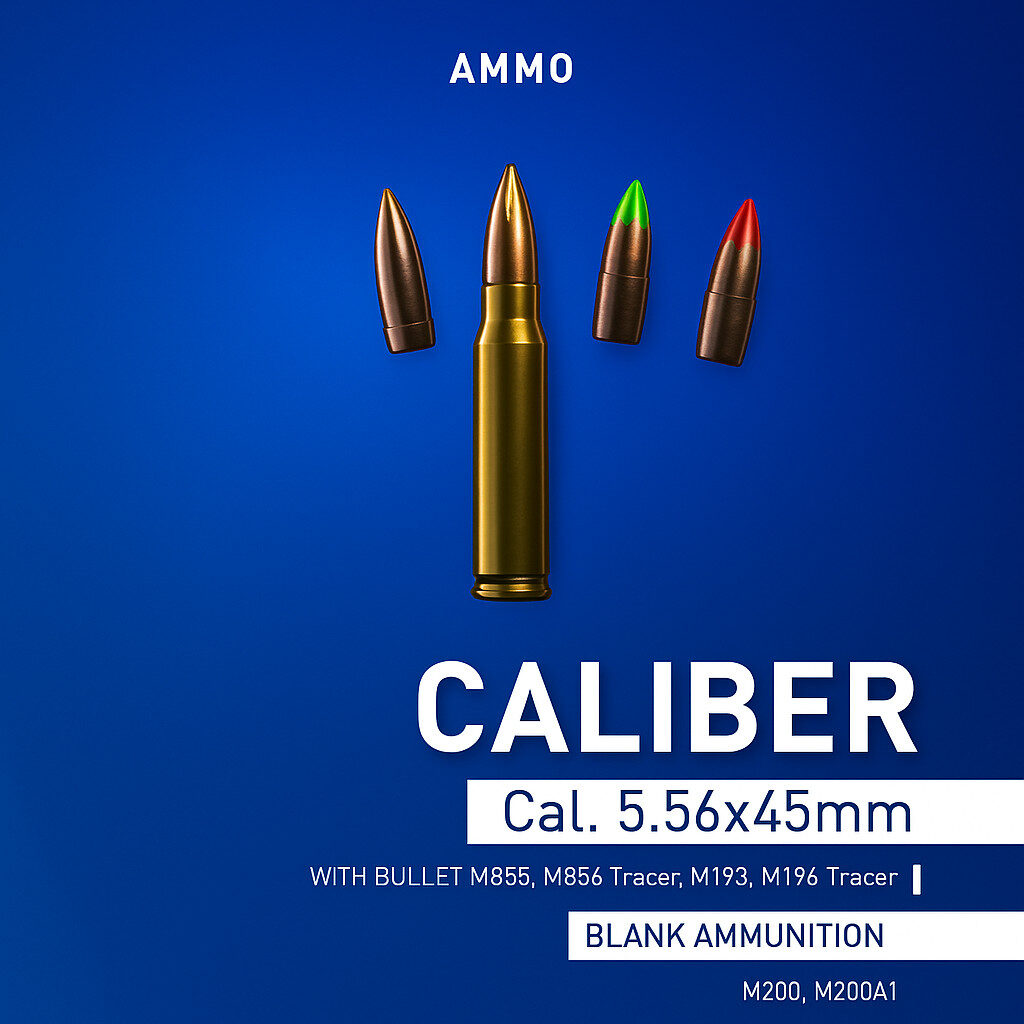

5.56×45mm NATO Ammunition Overview

The 5.56×45mm NATO is a standard intermediate rifle cartridge developed by NATO in the late 1970s, based on the civilian .223 Remington. It was designed for use in assault rifles, offering a balance between range, lethality, recoil, and ammunition weight. It became the standard cartridge for NATO forces, widely used in rifles like the M16, M4 Carbine, FN SCAR, and Steyr AUG.

Technical Specifications

• Caliber: 5.56 mm

• Case Length: 45 mm

• Overall Cartridge Length: Approx. 57 mm

• Bullet Weight: 55 to 62 grains (approx. 3.6 to 4.0 g)

• Muzzle Velocity: Approx. 870–950 m/s (varies by barrel length and load)

• Muzzle Energy: Around 1,300–1,700 Joules

Common Bullet Types

1. M855 (SS109)

   • 62-grain bullet with a steel penetrator tip

   • Green tip identifier

   • Designed for increased penetration (light armor, helmets)

   • Standard issue for many NATO militaries

2. M193

   • 55-grain full metal jacket (FMJ) bullet

   • Used prior to M855; still common for training and civilian use

   • Higher velocity, more fragmentation upon impact

3. M856 Tracer

   • Similar to M855 but with tracer compound

   • Red or orange tip

   • Allows shooter to observe bullet trajectory in low light

4. M196 Tracer

   • Tracer version of the M193

   • Lower penetration but useful for aiming corrections and signaling

Blank Ammunition

1. M200

   • Used in training or ceremonial functions

   • No projectile – requires blank-firing adapter (BFA) for cycling

   • Often has a purple or crimped tip

2. M200A1

   • Improved version of the M200 with better cycling and consistency

Applications

• Military: Main combat round for infantry rifles and light machine guns (e.g., M249 SAW)

• Law Enforcement: Used by tactical teams in AR-15/M4-style rifles

• Civilian: Popular for sport shooting, hunting, and home defense (in .223 Rem or 5.56 NATO)

• Training: Widely used due to manageable recoil and availability

Weapons Chambered for 5.56×45mm

• M16, M4 Carbine

• FN FNC, FN SCAR-L

• Steyr AUG

• HK416

• IWI Tavor

• CZ 805 Bren

• AR-15 platforms

Key Advantages

• Low recoil – easy to control in automatic or rapid fire

• High velocity – flat trajectory, effective at medium ranges

• Lightweight – allows soldiers to carry more rounds

• Effective terminal ballistics – particularly with proper shot placement or fragmentation
